Bottle Shrink Sleeve Wrapper Machine For Water Bottles
Product Description
Products Description

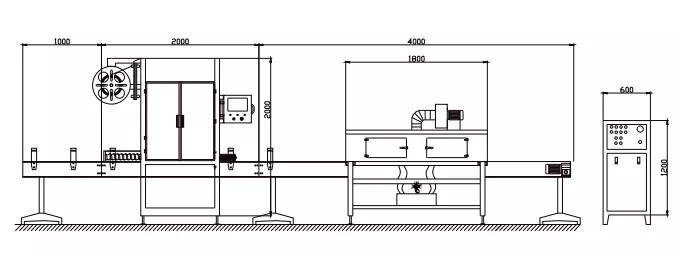

(Model) | SLM-150 | |
Machine | (L * W * H) | 2100 * 850 * 2000mm |
(Weight) | 400kgs | |
(Electric power) | 3.0KW | |
(Speed) | 6000--9000Bottles/h | |
(Eligibility percent) | 99.5% | |
Container | (Height) | 320mm |
(Diameter) | 28mm – 125mm | |
(Materials) | PET, PP, Glass | |
(Shapes) | Round , square & oval | |
Shrink Sleeve | (Materials) | PVC, PET, OPS |
(Thickness) | 0.035 - 0.13mm | |
(Length) | 30mm – 250mm | |
(Flat width) | Max.175mm |
NO. | Item | Technical data |
1 | Transporting Speed | 0-35m/min |
2 | Input Power Supply of Blower | 220VAC 0.18KW |
3 | Size of Oven Body | 1800 x 400 x 450 (mm） |
4 | Input Voltage Supply of Blower | ∮1, 220 VAC |
5 | Input Voltage Supply of Steam Generator | 380V/ 50 Hz |
6 | Weight | 150kgs |
No. | Item | Technical data |
1 | Input Power Supply | 3 Phases 380V/220V |
2 | Input Power | 18KW / 24KW / 36KW |
3 | Steam Pressure | 0.4Mpa~0.7Mpa |
4 | Vapor Generation Value | 25.8Kg/h |
5 | External Dimension | 760*670*1360mm |
6 | Water Tank Volume | 48L |
7 | Weight | 125Kg |
Configuration | ||||||||
1 | PLC | FPX-C40T | Panasonic | Japan | ||||
2 | High-speed Optical Fiber Sensor | FX-501 | SUNX | Japan | ||||
3 | Photoelectric Sensor | CX-421 | SUNX | Japan | ||||
4 | Photoelectric Sensor | CX-442 | SUNX | Japan | ||||
5 | Photoelectric Sensor | PM-L45 | SUNX | Japan | ||||
6 | Label Infeeding Servo Motor | BCH0801O12A1C (400W) | Schneider | France | ||||
7 | Label Infeeding Servo Drive | LXM23DU04M3X (400W) | Schneider | France | ||||
8 | Cutting Head Servo Motor | BCH0801O12A1C (400W) | Schneider | France | ||||
9 | Cutting Head Servo Drive | LXM23DU04M3X (400W) | Schneider | France | ||||
10 | Bottle Separation Motor | 5IK90W-S2F-GU-T-5GN7.5K-C12 | TaiQi | Taiwan | ||||
11 | Bottle Separation Frequency Converter | BFV00022DK | Delta | Taiwan | ||||
12 | Conveyor Motor | RV50-15K-750W | TaiQi | Taiwan | ||||
13 | Label Feeder AC Contactor | RV50-15K-180 | TaiQi | Taiwan | ||||
14 | Label Feeder Frequency Converter | BFV00022DK | Delta | Taiwan | ||||
15 | Conveyor Frequency Converter | BFV00022DK | Delta | Taiwan | ||||
16 | Bottle Conveyor Frequency Converter | BFV00070DK | Delta | Taiwan | ||||
17 | Bottle Conveyor Motor | 5IK90W-S2F-GU-T-5GN15K-C12 | TaiQi | Taiwan | ||||
18 | Framework Lifting Motor | 5IK90W-C2F-GU-T-5GU30K-C15 | TaiQi | Taiwan | ||||
19 | Under-brush Motor | 5IK120W-C2F-A1-12-T | TaiQi | Taiwan | ||||
20 | Positioning Brush Motor | 4IK25W-C2-GN-T-4GN3K-C10 | TaiQi | Taiwan | ||||
21 | Draught Fan Motor | 180W | WANSHIN | China | ||||
22 | Switch Knob | XB2-BD21 | Schneider | France | ||||
23 | Switching Power Supply | S-50-24 | Schneider | France | ||||
24 | AC Contactor | LC1-D1810M5C | Schneider | France | ||||
25 | Circuit breaker | D20 2P | Schneider | France | ||||
26 | Intermediate Relay | MY2NJ24VDC | Schneider | France | ||||
27 | Touch Screen | TK6070IP | WEINVIEW | Taiwan | ||||
28 | Fan | SF11025AT | Luann | Shanghai | ||||

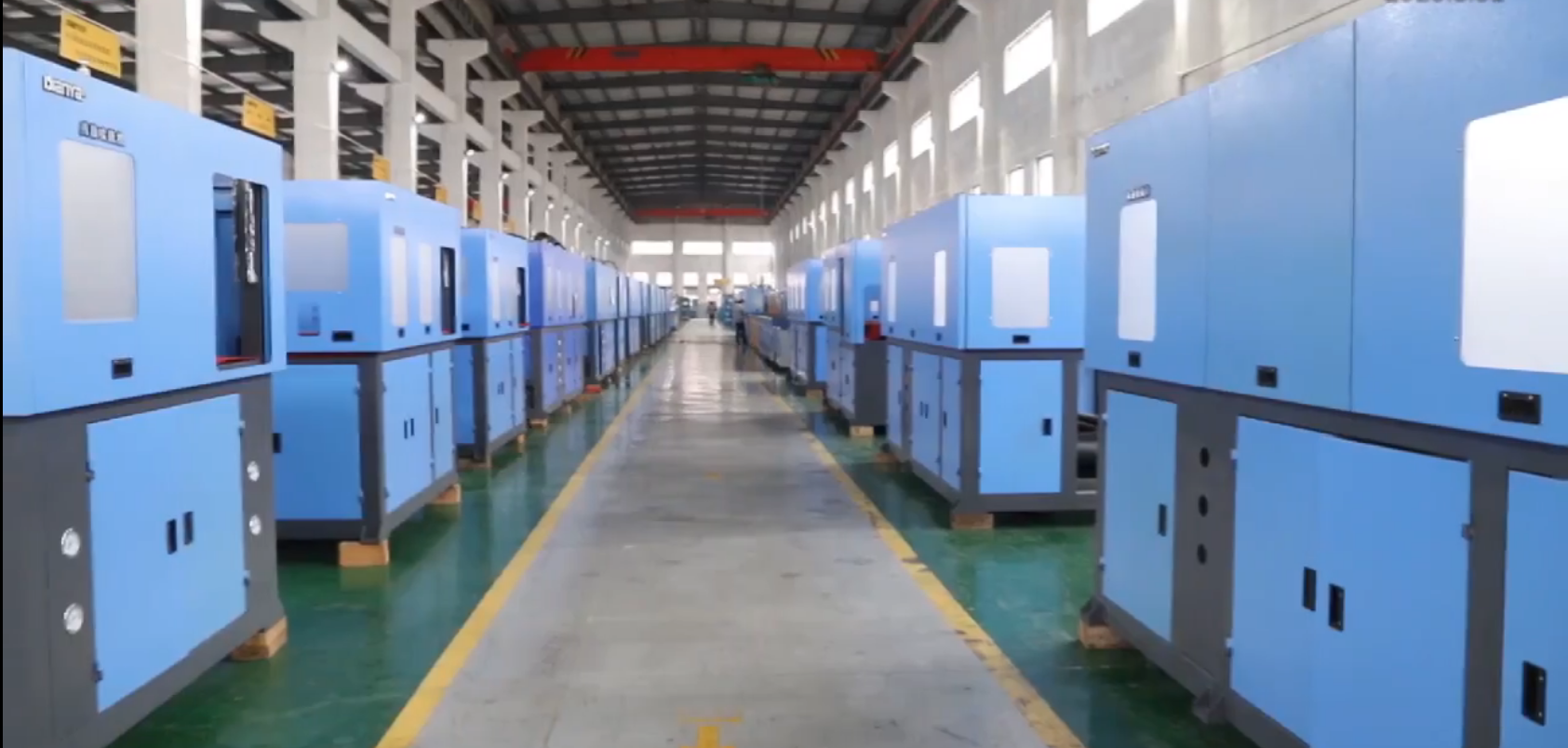

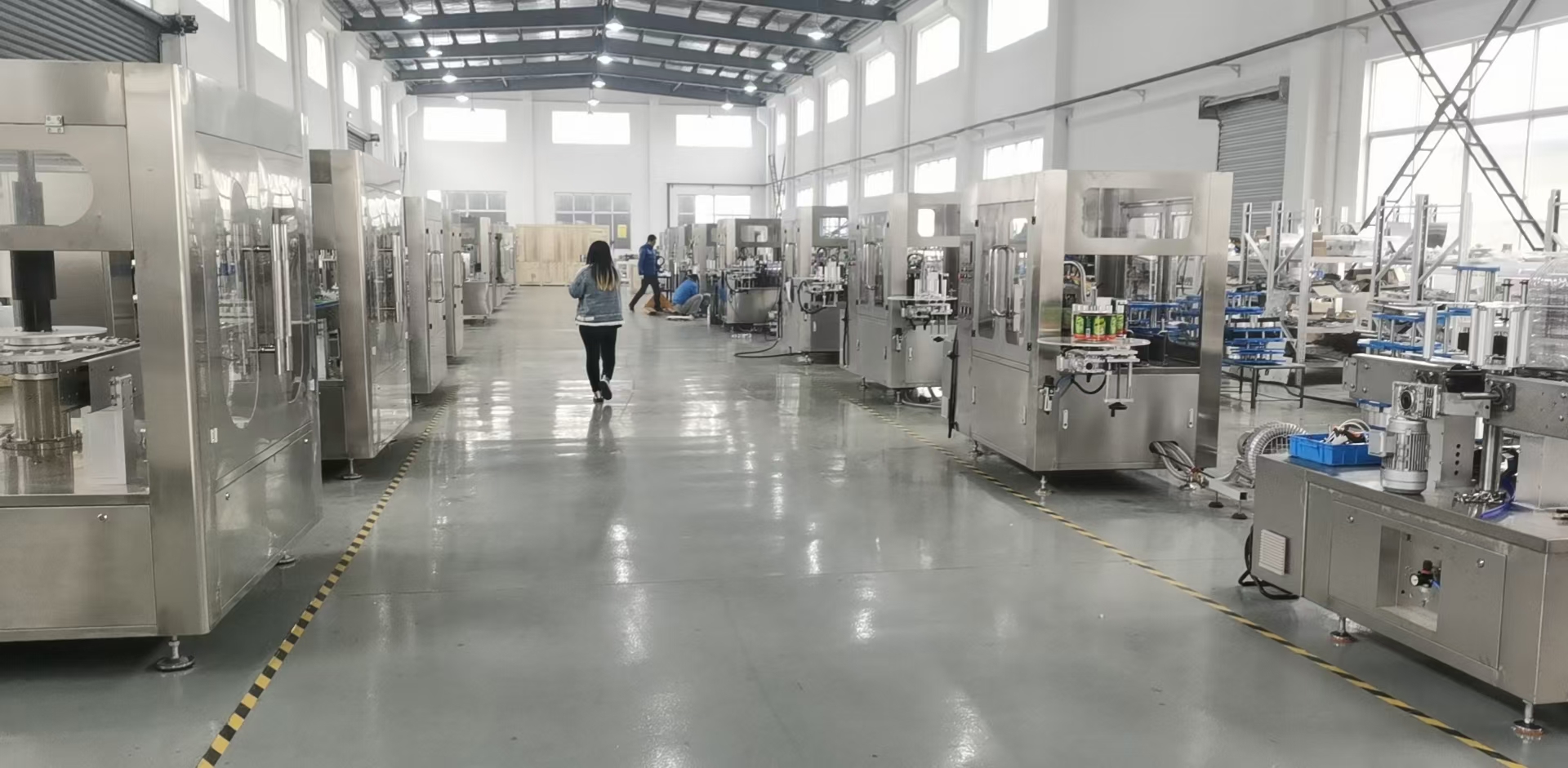

Company Profile
Taizhou PAIRSUN PACKAGING Machinery is a leading supplier to provide the plastic machine, packaging machine and plastic products.The company was originally founded in Taizhou, China, in 1991 under the name Huangyan Chengnan Packaging Material Printing Company.
PAIRSUN PACKAGING MACHINERY has 30 years experience, with a world-class design team, a network of high-quality manufacturers and a team dedicated to professional service. In 2006, the company start its international business and has established a very stable and pleasure win-win partnership customers from more than 100 countries.
The goal of PAIRSUN PACKAGING MACHINERY is deliver One-Stop world class packaging solutions that exceed your expectations, and provide the professional service that is second to none. Whether you’re looking for a stock package or an innovative custom design, we have the expertise, resources, and passion for great packaging.
Certification
Packing & Delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
Recommend Products
FAQ
Q1 :What kinds of product you supply?
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Shrink Sleeve Label, Sticker Label, Bopp Label, Iml Label, Heat Transfer Film,etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trademanager , Whatsapp, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: - Tell us the bottle size,bottle shape,bottle material and how many bottle size do you have.
- Tell us the label size you want for your bottle.
- Tell us the capacity,such 9000 bph, 12000 bph etc.
Then we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Shrink Sleeve Label, Sticker Label, Bopp Label, Iml Label, Heat Transfer Film,etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trademanager , Whatsapp, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: - Tell us the bottle size,bottle shape,bottle material and how many bottle size do you have.
- Tell us the label size you want for your bottle.
- Tell us the capacity,such 9000 bph, 12000 bph etc.
Then we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
